VOILIER ODIN · video

Cosa tratta questo video

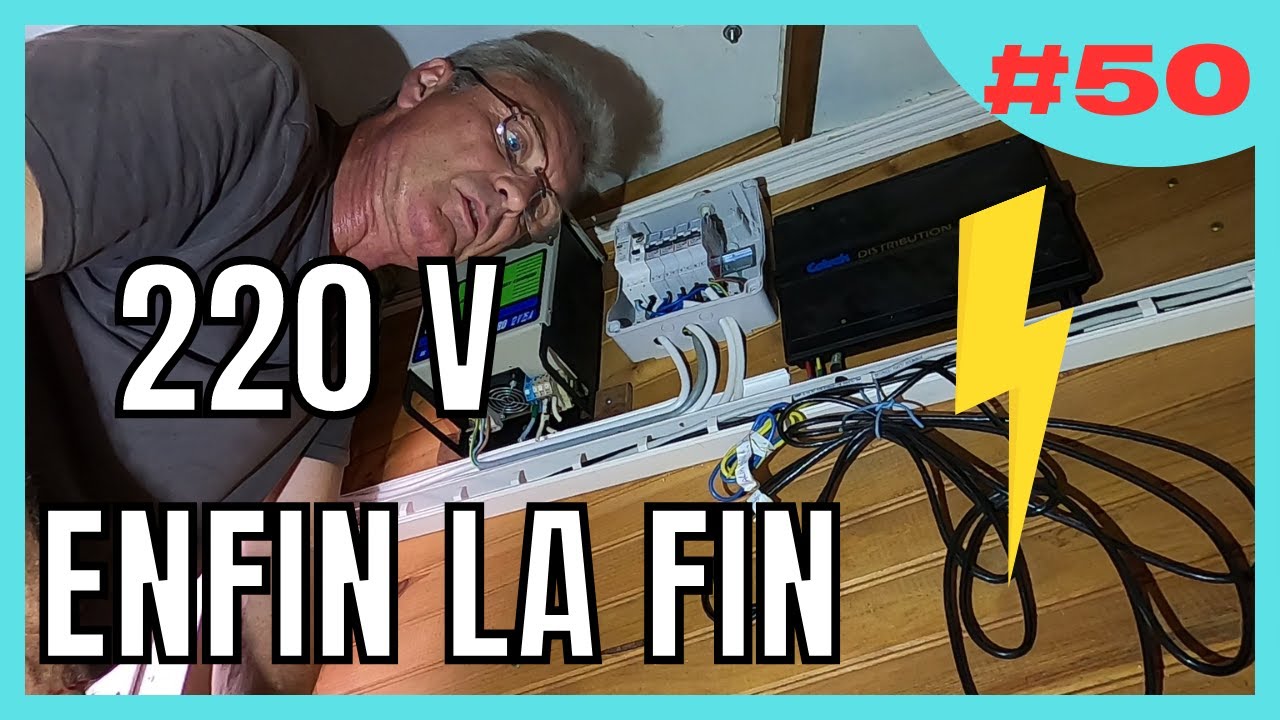

The installation of a 220V AC electrical system on a sailboat involves routing 2.5mm² cable from a shore power inlet to a new distribution panel equipped with circuit breakers.5:45 The project includes wiring eight outlets located in the galley, chart table, forward berth, and exterior, as well as a dedicated circuit for the refrigerator.0:54 To ensure secure connections, wire ends are tinned before being secured into terminals.10:02 The system is tested using a phase tester to verify correct polarity at each outlet and to ensure the circuit breakers do not trip under load.7:17 The setup is designed to allow for a future 12V-to-220V inverter to be wired in parallel, with a switching system to isolate the battery charger.22:55 The refrigerator is secured with a custom-built mounting bracket and provided with ventilation gaps of 3–4 cm to ensure efficient operation.19:42 All 220V cables are labeled to distinguish them from the vessel's 12V wiring.27:39
