Resolving low voltage issues with 3000 watt inverter on our sailboat
March 16, 2023 · 8 min · 481 views
What this video covers

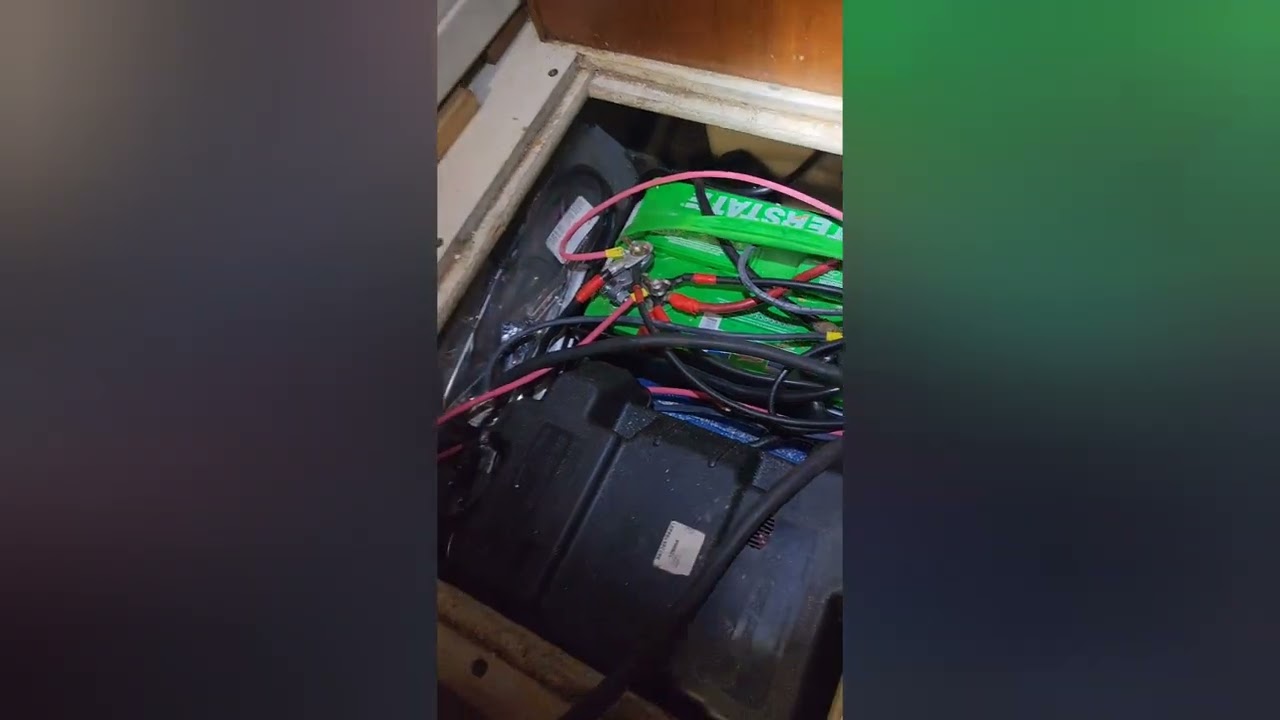

The 39-foot CNC39 sailboat Epiphany experienced significant voltage drops when powering high-draw appliances like a microwave and coffee pot through its 3000-watt pure sine wave inverter.2:11 Despite a battery bank showing a full charge, the inverter registered a one-volt deficit compared to the batteries, causing the unit to trigger low-voltage alarms and shut down during operation.1:50 To resolve this, the owner relocated the inverter from the rear of the boat to a new position adjacent to the engine compartment and the battery bank.3:24 This move eliminated 27 feet of 1-0 battery cable and 8 feet of AC wiring, significantly reducing electrical resistance.7:03 After rerouting the cables through a new bulkhead penetration and securing them with zip ties to prevent chafing, the voltage drop under load decreased from one volt to two-tenths of a volt.5:35 The microwave now operates continuously without triggering the inverter’s low-voltage protection.8:13 Reducing cable length between the battery bank and the inverter effectively stabilizes voltage for high-draw AC appliances.
