Tips for Wiring a Battery Bank On Your Boat
November 13, 2018 · 4 min · 59K views
What this video covers

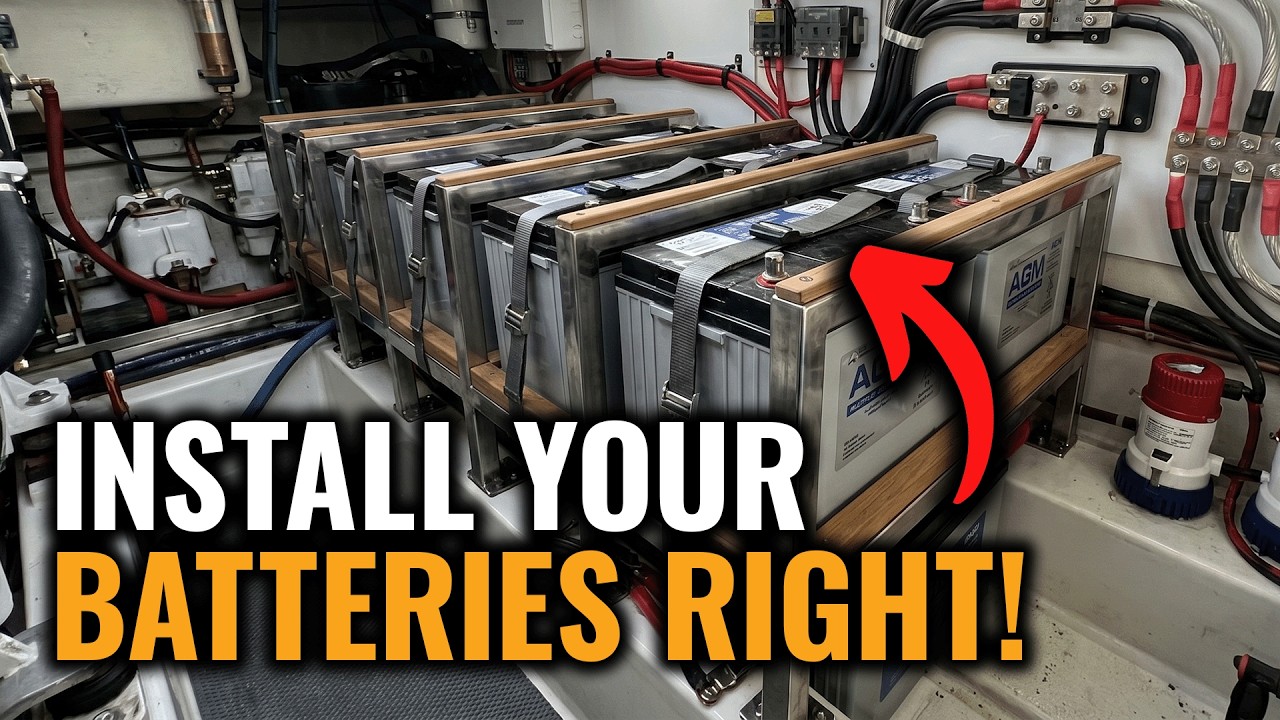

Secure battery banks to prevent movement in rough seas and consolidate all batteries into a single location to ensure uniform performance.0:26 Use appropriately gauged cabling for all inter-battery connections to handle the total current draw.0:48 Before connecting the bank to boat loads, verify the final output voltage with a multimeter to confirm the system is correctly configured as 12 or 24 volts.1:12 Sketch the wiring diagram beforehand to avoid missing series jumpers, which can leave some batteries disconnected from the circuit.1:36 Connect the main positive and negative leads to opposite ends of the battery bank to promote even discharge across all cells.1:58 Install positive and negative distribution blocks to avoid overloading battery posts with multiple connections, which simplifies future maintenance and circuit additions.2:48 For flooded lead-acid batteries, route cables away from vent caps to ensure they remain accessible for regular servicing.3:24 Neglecting maintenance on inaccessible caps leads to premature battery failure.3:30
