Small Boat Finishing Dolly Measurements and Construction
July 27, 2023 · 14 min · 152 views · Florida
What this video covers

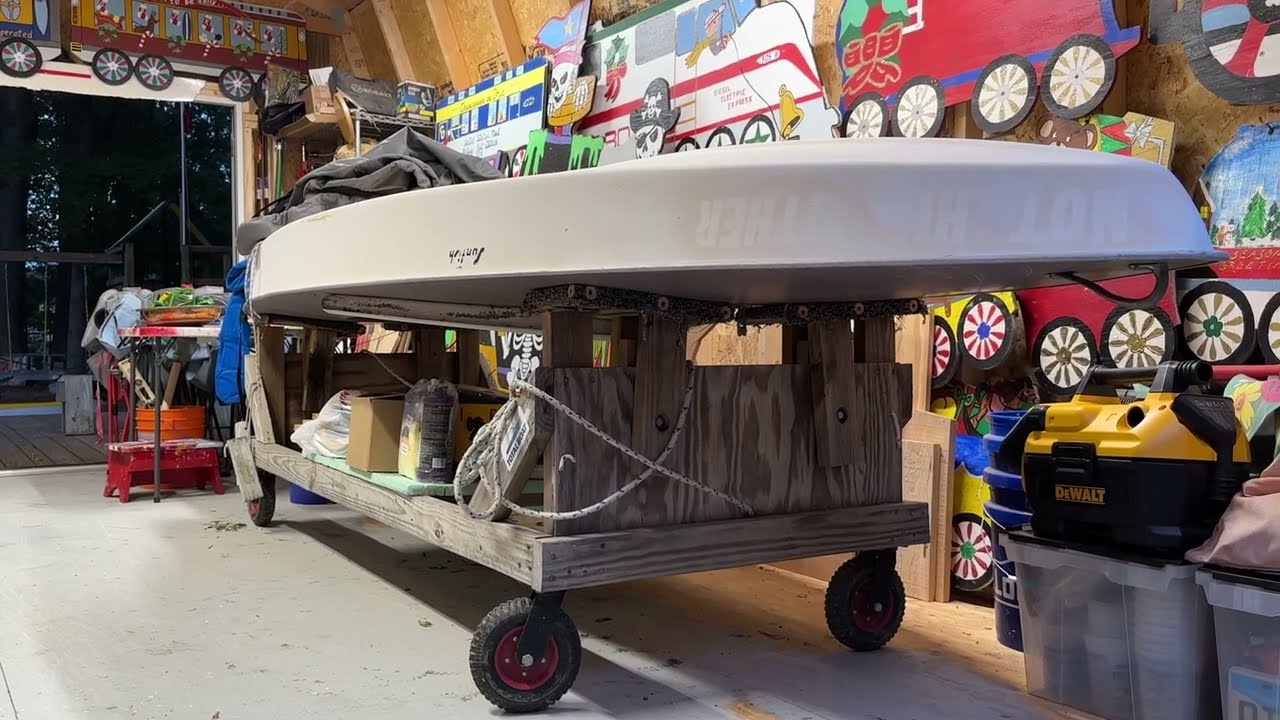

A DIY finishing dolly for small boats like a Sunfish measures approximately 3 feet wide by 8 feet long, constructed primarily from 2x4 lumber and 1/2-inch plywood.0:15 The frame features articulating arms topped with 8-inch by 14-inch pads covered in marine-grade carpet to cradle V-bottom hulls.3:12 The assembly stands 26 inches high, a height chosen to allow comfortable access to the boat's chine for sanding and painting without causing shoulder strain.7:07 The design incorporates 6-inch solid wheels for mobility, allowing the boat to be moved between indoor and outdoor workspaces.0:39 Galvanized machine screws and exterior-grade deck screws ensure durability against weather when stored outside.4:00 The dolly can also serve as a mobile workbench or a base for a strongback jig by adding a custom box frame on top.10:54 To prevent unwanted movement, small wood scraps can be screwed to the floor around the tires to chock the wheels in place.12:48
