Electricity Explained: Volts, Amps, Watts, Fuse Sizing, Wire Gauge, AC/DC, Solar Power and more!
January 31, 2019 · 26 min · 3.7M views

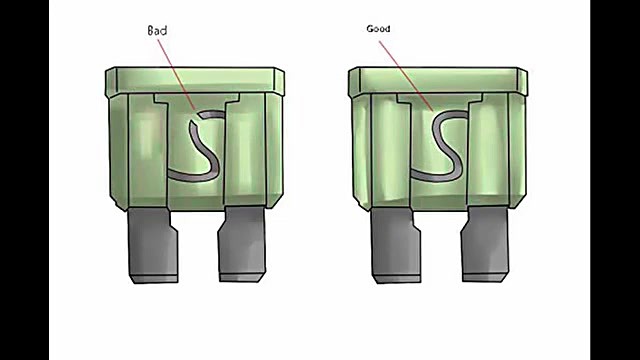

Two fuses, one broken, one intact, show electrical safety.
What this video covers
A beginner-level tutorial covers the core electrical concepts needed to design and size a solar power system: volts, amps, watts, watt-hours, AC vs. DC current, wire gauge, fuse sizing, and series vs. parallel connections.▶ 0:00 Voltage is explained as electrical pressure determining component compatibility; amperage as current flow determining wire size; watts as the product of the two.▶ 4:18 The water-hose analogy runs throughout.▶ 3:27 Watt-hours are introduced as the correct unit for comparing batteries and calculating runtime — a 1,000 Wh battery powers a 100 W load for 10 hours.▶ 11:23 Series connection raises voltage while holding amps constant; parallel connection raises amps while holding voltage constant.▶ 13:29 A worked design example uses three 12 V 155 Ah sealed lead-acid batteries wired in parallel (465 Ah, 5,580 Wh total, 2,790 Wh usable at 50% discharge), four 101.1 W solar panels producing 404.4 W total, and a 40 A charge controller sized above the calculated 33.7 A requirement.▶ 14:48 Wire gauge selection and fuse sizing follow from amperage, not wattage.▶ 19:24 The core lesson: always convert to watt-hours before comparing batteries or sizing system components.
