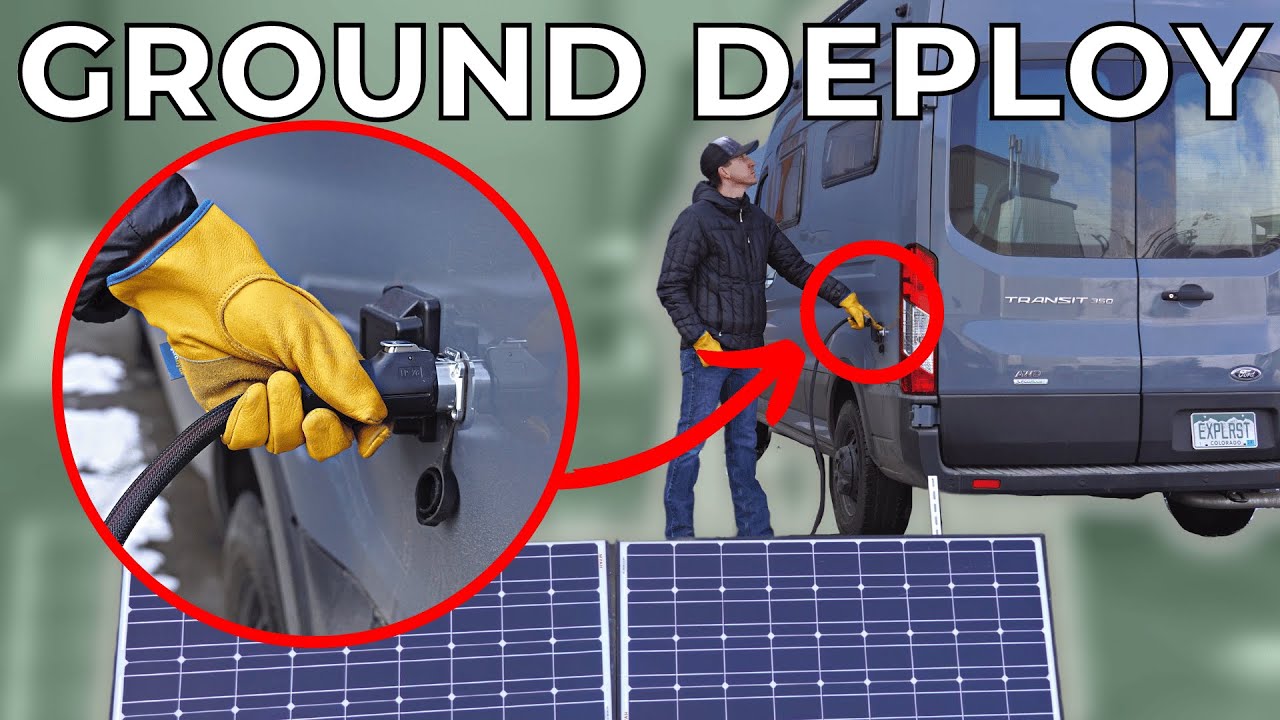

Installing a GROUND SOLAR PLUG for a DIY camper electrical system.
March 19, 2023 · 7 min · 29K views
What this video covers
Nate demonstrates the installation of a 50-amp, 500-volt DC connector to facilitate a ground-deployable solar array for camper electrical systems.0:18 The process involves mounting a panel-side connector to the van wall using a step bit, followed by painting the exposed metal edges to prevent rust.2:13 The connector features a rubber gasket for waterproofing, though additional sealant remains optional.2:56 Inside the van, the connector wires route directly to a solar isolator and then to the solar charge controller.1:56 For the external solar array side, the wiring uses 10-gauge solar wire protected by wire loom, terminating in MC4 connectors to ensure compatibility with various solar panel configurations.6:32 Proper strain relief using zip ties prevents movement at the connection point.3:38 Matching the positive and negative terminals between the van-side and array-side plugs ensures correct polarity.1:06
