Warrior 40

BoatsWarrior 40

See her sail

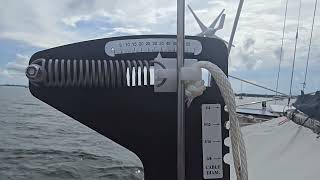

The Warrior 40, on the water

The fleet's own footage — the truest look at how she really moves.

Footage from Adventures of an old Seadog

Is it for you?

Character

Where this design lands on the numbers a shopper trusts — read straight from her own ratios.

LivelySea-kindly

Her moderate displacement on a moderate beam gives 28 — a moderate, middle-of-the-road motion.

Comfort ratio 28

CoastalBluewater

1.96 — just under the 2.0 offshore line; her beam is modest for her weight.

Capsize screening 1.96

LightHeavy

274 — moderately heavy for her waterline, a balanced cruising weight.

Displacement / length 274

TenderStiff

44% of her weight is ballast — stiff, standing up well to her sails.

Ballast 44%

A capable cruiser that sits just inside the offshore line — coastal work with real passages in her.

Draws less than ~87% of boats her size on file
Beamier than ~78% of boats her size on file

Compared with 2882 boats of the same type within a quarter of her length.

What the fleet has seen

The Warrior 40, as the fleet has seen it

Derived from the videos the fleet has analysed of this model. ▶ marks open the moment aboard.

The Warrior 40 is a 12.0-meter cutter-rigged sailboat designed by Angus Primrose and Bill Dixon, built by Trident Marine Ltd. since 1988. It features a fin keel with a rudder on skeg, a 4.0-meter beam, 1.5-meter draft, and 8499 kg displacement. Twin diesel engines were an available option. Aboard *Adventures of an old Seadog*, Barry Perrins hauled his Warrior 40, *Shaddy*, at the Royal Cape Yacht Club in Cape Town, South Africa, for a refit.0:12 During this maintenance, Perrins addressed a rust-induced hole in the hull and a bilge odor from a leaking water tank.5:35 He also replaced a faulty water pump and verified skin fittings after the boat returned to the water, which then withstood 35-40 knot winds in the marina.18:00

The living fleet

Sailed by the fleet

Where the fleet has filmed this boat.

Seen once across one channel of the fleet.

Basemap © Wikimedia Commons · CC BY-SA 4.0

The record

Full specifications

The complete reference set — tap any figure to switch between metric and imperial.

Dimensions

Weights

Ballast / displacement

44.1%

Rig & sail area

Rig

Cutter

Ratios

Displacement / length

273.6

Comfort ratio

28.3

Capsize screening

1.96

Hull speed

7.5 kn

Pounds / inch immersion

1451

Hull

Hull type

Fin with rudder on skeg

Construction

Fiberglass

Ballast type

Iron

Production

Years built

First built 1988

Designer

Angus Primrose, Bill Dixon

Builder

Trident Marine Ltd
